Fire Alarm System
Learn about our advanced Fire Alarm System at Stringtech Engineering Network, including fire alarm system installation, smoke detector service, and expert technician support. Ensure the safety of your premises with our comprehensive fire alarm solutions.
What is Fire Alarm System ?
At Stringtech Engineering Network, our Fire Alarm System is a comprehensive and technologically advanced solution designed to ensure early detection and swift response in case of fire emergencies. Our system serves as the central hub for fire alarm system installation, providing efficient monitoring and a user-friendly interface that can be tailored to fit the specific needs of different facilities.
.Trust in Stringtech Engineering Network for cutting-edge fire alarm systems update that prioritize the safety of your premises and occupants

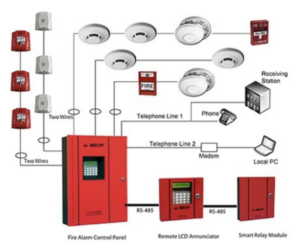

How Fire Alarm System Work?

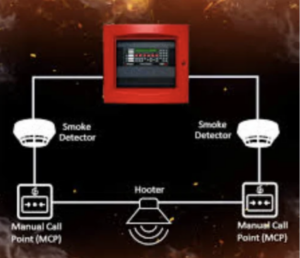

A fire alarm system detects fire, smoke, or carbon monoxide and alerts occupants through visual and audible alarms. Smoke detectors sense smoke particles, while heat detectors respond to high temperatures. The control panel processes these signals and triggers alarm devices like horns and strobe lights. Manual call points allow for manual activation. Once activated, the system alerts occupants and emergency responders, ensuring a swift response. Our Stringtech Engineering Network company provides expert fire alarm system supply,installation, maintenance, and smoke detector service to ensure reliable operation and comprehensive protection for your premises.
A fire alarm system detects fire, smoke, or carbon monoxide and alerts occupants through visual and audible alarms.

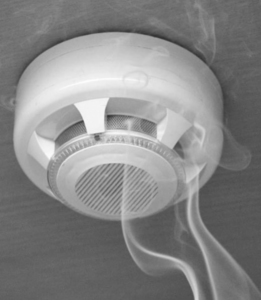

Smoke Detectors: Sense smoke particles in the air.
Heat Detectors: Respond to high temperatures.
Control Panel: Processes signals and triggers alarms.
Alarm Devices: High-decibel horns and strobe lights.
Manual Call Points: Allow manual activation in emergencies.
Once activated, the system alerts occupants and emergency responders, ensuring a swift response. Our fire alarm company provides expert fire alarm system installation, maintenance, and smoke detector service to ensure reliable operation and comprehensive protection for your premises.
Add Your Heading Text Here
Fire is a constant threat, making a properly functioning fire alarm system crucial for protecting lives and property. Whether you’re a homeowner, business owner, or property manager, ensuring your fire alarm system is up-to-date and well-maintained is an investment in safety and peace of mind.
Importance of Fire Alarm Systems
- Early Detection: Fire alarms can detect smoke and heat before they become visible, providing valuable seconds for evacuation and fire department notification.
- Lifesaving Alerts: A loud alarm can wake sleeping occupants and alert everyone in the building to a potential fire, enabling a quick escape.
- Reduced Property Damage: Early fire detection helps minimize property damage.
- Compliance: Most buildings are legally required to have a functioning fire alarm system.

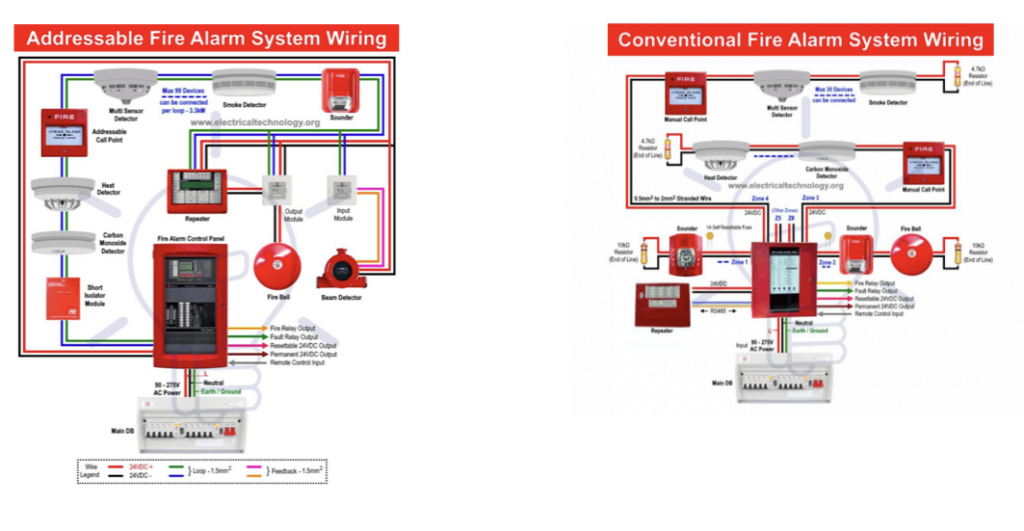

Types of fire alarm systems
There are two types of Fire alarm systems,
- Addressable Fire Alarm System
- Conventional Fire Alarm System
As we mentioned, a fire alarm system has two main types: addressable and conventional. Addressable systems are advanced, pinpointing fire or faults with unique device addresses. Each device has a unique address, displaying its location on the control panel for quick response, ideal for larger buildings. Conventional systems are simpler, dividing detectors into zones without pinpointing exact locations. They’re cost-effective and used in smaller buildings for basic fire detection.

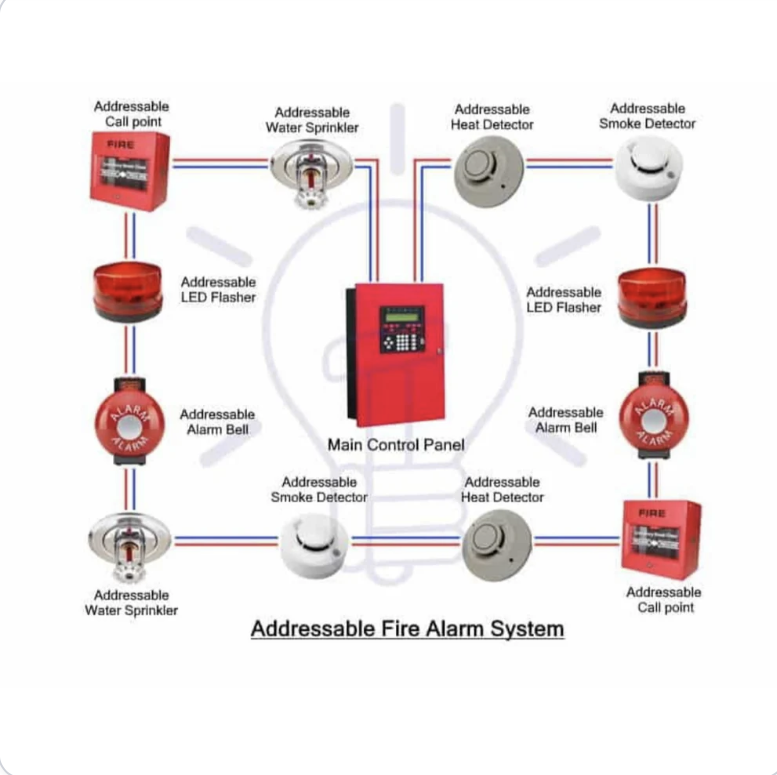

Addressable Fire Alarm System
An addressable fire alarm system is a sophisticated and advanced solution designed to pinpoint the exact location of a fire or fault within a building. Each device, such as smoke detectors or call points, has a unique address or identifier. When a device is activated, the control panel displays the specific location, allowing for quick and precise response from emergency personnel. Addressable systems are ideal for larger buildings or complexes where pinpointing the location of a fire is crucial for effective evacuation and response. They offer enhanced flexibility, as devices can be individually identified and controlled. This makes them suitable for complex building layouts, where specific areas may require different response protocols. While addressable systems are more complex and expensive than conventional systems, their ability to provide detailed information about the location of a fire can significantly improve overall safety and response times

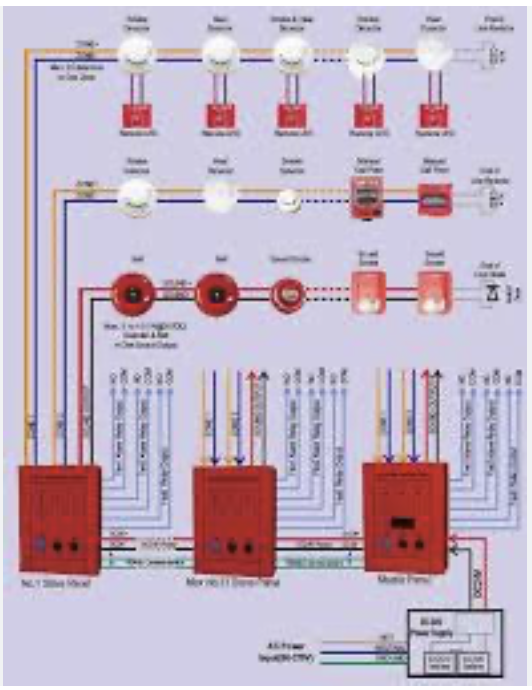

Conventional Fire Alarm System
A conventional fire alarm system is a more traditional and cost-effective solution that is often used in smaller buildings or facilities. In a conventional system, detectors and call points are divided into zones, and each zone is connected to the control panel through a circuit. When a device in a zone is triggered, the control panel indicates the specific zone but not the exact location of the activated device. Conventional systems are reliable for basic fire detection and are straightforward to install and maintain. While they may lack the pinpoint accuracy of addressable systems, they are still effective at providing early warning of fires and triggering evacuation procedures. Conventional systems are often used in smaller commercial and residential buildings, where the simpler system design meets the needs of the building layout and occupancy.

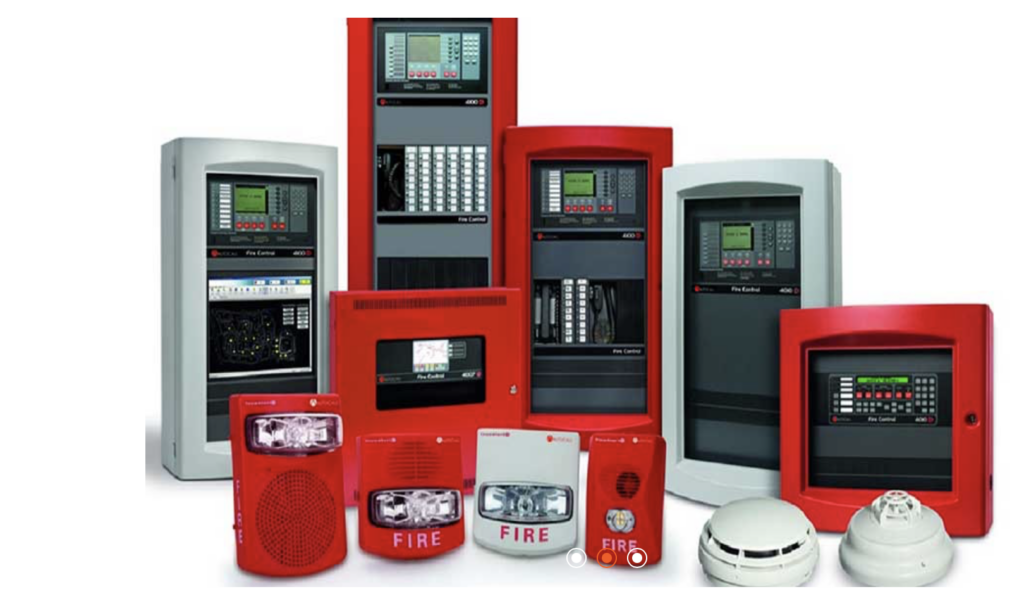

Addressable Products
ADDRESSABLE FIRE ALARM PANEL 2 LOOP TO 8 LOOP.
1. Advanced microprocessor based Digital Addressable fire alarm control panel.
2. Available on – 2 LOOP to 8 LOOP digitally addressable.
3. Support addressable Mcp
4. 32 character field programmable point text for each sensor.
5. 40 x 2 Character LC display
6. Advanced microprocessor based Addressable fire alarm control panel.
7. Modules include addressable pull stations, normally open contact devices.

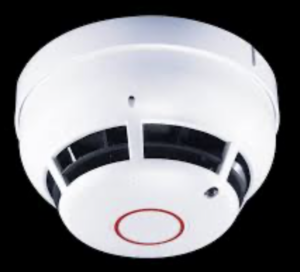

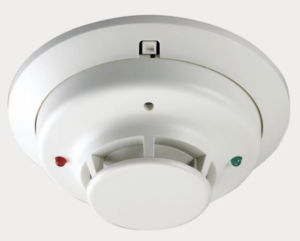

ADDRESSABLE SMOKE DETECTOR
1. Voltage range: 16-32 VDC.
2. Alarm current: 10-100ma.
3. Quiescent: 60uA @24VDC.
4. Operating temperature: OC to +90°C Humidity:<95%RH.
5.Productsize:10.6×10.6×5.2cm
6. 2 wire
7. Photoelectric sensor.

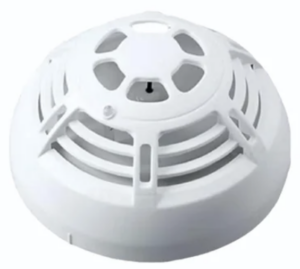

ADDRESSABLE HEAT DETECTOR
1. Voltage range: 16-32 VDC
2. Alarm current: 10-100mA
3. Quiescent: 60uA @24VDC
4. Operating temperature: OC to +90°C
5. Humidity:<95%RH
6. 2 wire.

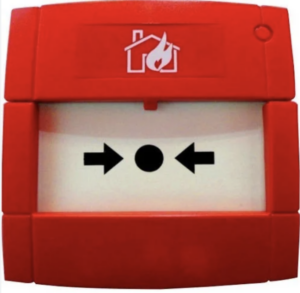

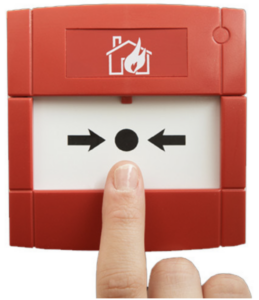

ADDRESSABLE MANUAL CALL POINT
1. Manual call point
2. Push button to reset
3. Protect by a plastic flip cover
4. Wall Mounted Type
FAULT ISOLATOR
1. Fault isolator
2. Protect by a plastic flip cover
3. Wall Mounted Type

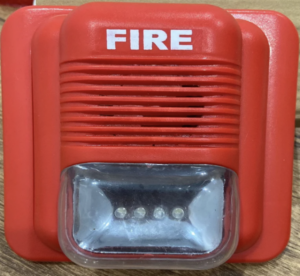

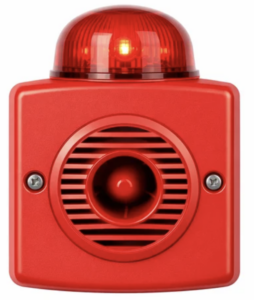

FLASHER HOOTER
1. Hooter with flesher
2. Wall mountain type
3. Attractive look
4. Suitable for sound polluted area
5. Power I/P:24 VDC
CONVENTIONAL PRODUCTS
CONVENTIONAL FIRE ALARM SYSTEM 2 Zone To 16 Zone.
1. Fully confirm IS 2189.
2. Power I/P-230V AC/24 DC
3. Power consumption 30 watt (Normal)
4. End of line- 4k7
5. Detection O/P supply -24V DC
6. Hooter O/P supply -24V DC
SMOKE DETECTOR Photoelectric sensor
1. Voltage range: 16-32 VDC
2. Alarm current: 10-100mA
3. Quiescent: 60uA @24VDC
4. Operating temperature: OC to +90°C
5. Humidity:<95%RH
6. 2 wire
HEAT DETECTOR
1. Vonage range: 15-32 VDC
2. Alarm current: 10-100mA
3. Quiescent: 60uA @24VDC
4. Operating temperature: OC to +90°C
5. 2 wire
6. Product size:10.6 x 10.6×5.2cm
MANUAL CALL POINT
1. Manual call point
2. Push button to reset
3. Protect by a plastic flip cover
4. Wall Mounted Type

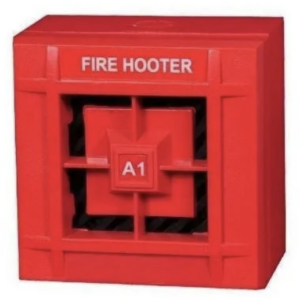

HOOTER ABS
1. Hooter
2. Abs mould
3. Wall Mounted
4. Power I/P: 24VDC
HOOTER WITH FLSHER
1. Hooter with flesher
2. Wall mountain type
3. Attractive look
4. Suitable for sound polluted area
5. Power I/P 24VDC

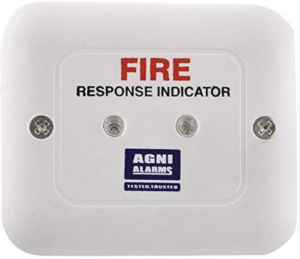

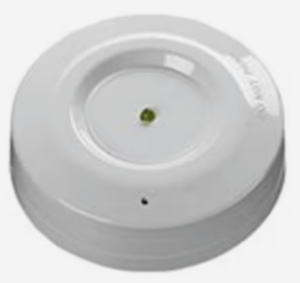

RESPONSE INDICATOR
1. Alarm status is indicated by Red colour.
2. Operates on 12VDC
3. Dual LED’s for 360 validity
4. Flus/Ceiling wall mount
Fire Alarm System Installation
we specialize in comprehensive fire alarm system installation services. Ensuring your fire alarm system is correctly installed is crucial for the safety of your property and occupants. Our expert technicians evaluate your building’s layout and specific needs to provide a customized installation plan. With our fire alarm system installation services, you can rest assured that your system will function optimally, providing early detection and swift response in case of emergencies.
Fire Alarm System
A reliable fire alarm system is essential for any property, whether it’s a commercial building, residential complex, or industrial facility. offers state-of-the-art fire alarm systems designed to detect fire and smoke early We provide tailored solutions to fit your specific needs, ensuring that your fire alarm system is both effective and compliant with local regulations.
Smoke Detector Service
Regular maintenance is crucial for the optimal performance of your fire alarm system. Our smoke detector service includes thorough inspections, testing, and cleaning of your smoke detectors to ensure they function correctly. Our smoke detector service team is dedicated to maintaining the highest safety standards, preventing false alarms, and ensuring early fire detection. Trust Stringtech Engineering Network for reliable smoke detector service that keeps your fire alarm system in top condition.
Fire Alarm Company
Our reputation as a trusted fire alarm company is built on years of experience, expertise, and a dedication to customer satisfaction. We offer a wide range of ,services, including sales & supply, installation, maintenance, and repair of fire alarm systems.
Add Your Heading Text Here
Our fire alarm expert technicians are highly trained and experienced in all aspects of fire alarm systems. From installation to maintenance and repair, our fire alarm expert technicians ensure your system is in perfect working order. They stay up-to-date with the latest industry standards and technologies, providing you with the best possible service. Whether you need a new system installed or existing components serviced, our fire alarm expert technician are to help.
Get Started Now
Our architects and consultants can assist your organization in tailoring the perfect solution for all your business requirements. You can reach out to us for more information on how we can help.
